Web tension regulation

We offer very compact solutions with integrated brakes for every application. Solutions with flange bearing or pedestal bearing are possible.

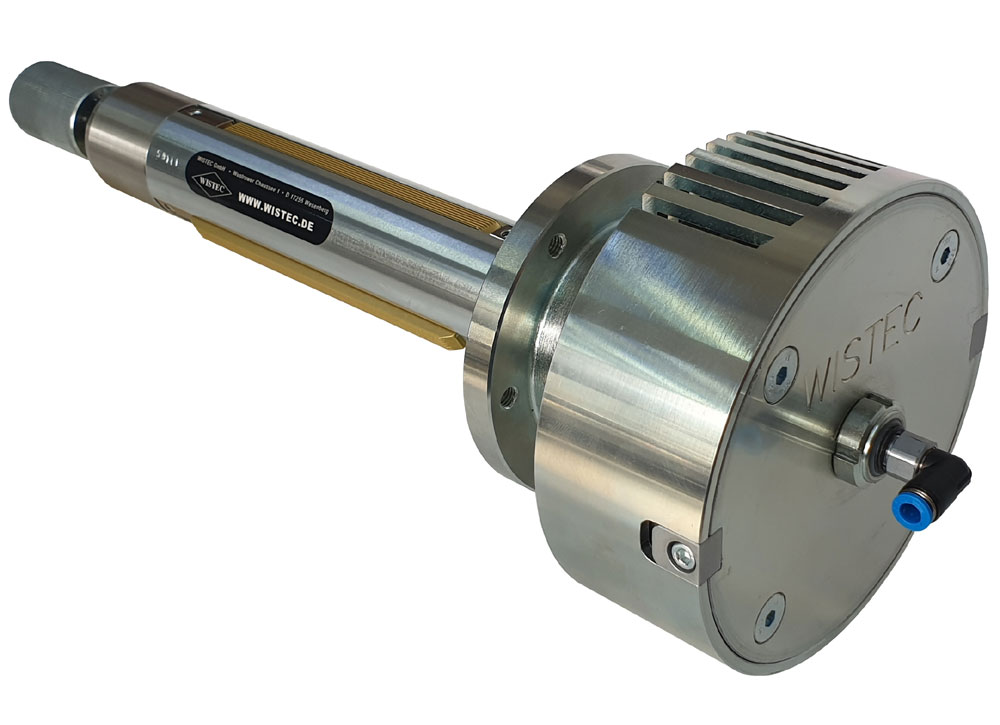

WISTEC Spannwelle mit Flanschlager und integrierten mechanischer Bremse; das Bremsmoment ist stirnseitig justierbar, die Druckluftzufuhr für die Welle erfolgt axial
WISTEC expansion shaft with flange bearing and integrated mechanical brake; the braking torque is adjustable on the face side, the compressed air supply for the shaft is axial

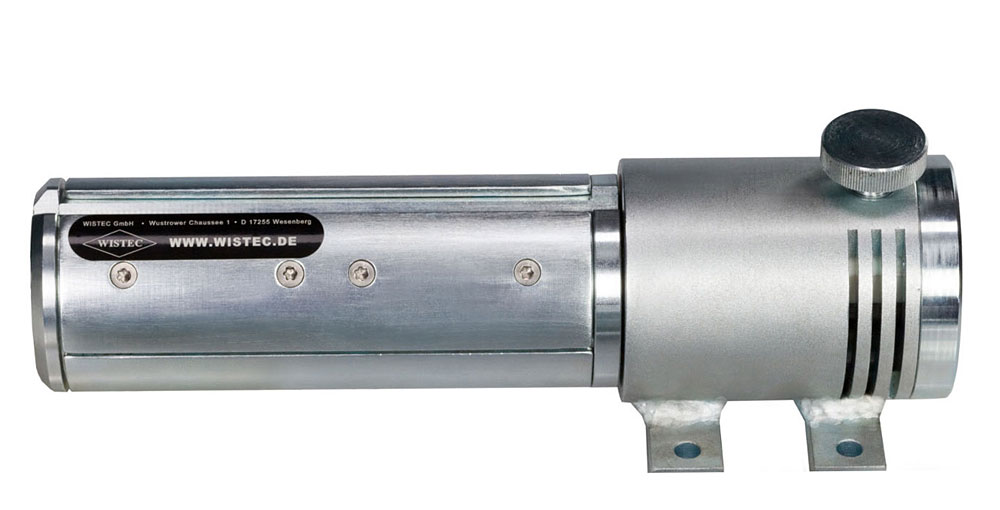

WISTEC 75 mm Wickelwelle mit Spannschalen und Einfädelspalt für den Bahnanfang; im Stehlagergehäuse ist eine Bremse integriert, mittels der Rändelmutter einstellbar
WISTEC 3” winding shaft with clamping shells and threading gap for the beginning of the web; a brake is integrated in the pillow block housing, adjustable by means of the knurled nut

Simple solutions are often sufficient to prevent the rolls from running after each other in clocked processing steps:

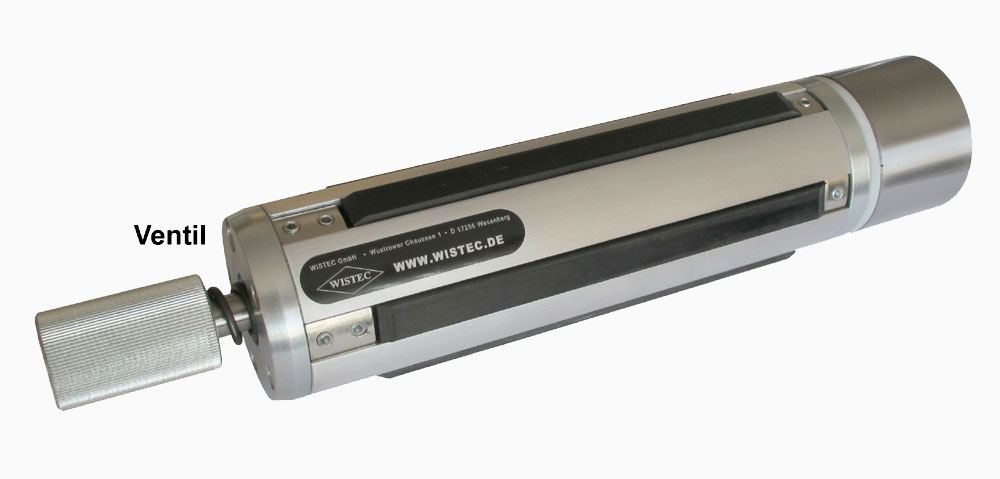

WISTEC pneumatische Spannwelle für 3“ Hülsen mit integrierter Lagerung, das notwenige Bremsmoment ist stirnseitig einstellbar
WISTEC pneumatic expansion shaft for 3" sleeves with integrated bearing, the necessary braking torque is adjustable on the front side
