Pneumatic - Mechanical Chucks

If high torques are required, especially for shaftless winding and unwinding, pneumatic-mechanical expansion chucks are used.

They also offer the following advantages:

  • 100 % centric clamping of the sleeves
  • High winding speeds are possible
  • Variability in sleeve diameters

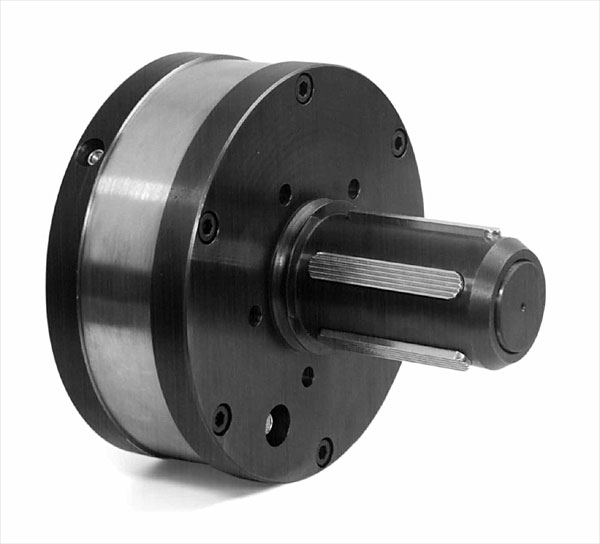

Basisspannkopf, hier zum Spannen von 70 und 76 mm Hülsen

WISTEC basic expansion chuck, here for clamping 70 and 76 mm cores

As a basic expansion chuck, we manufacture a design in which five expansion wedges expand mechanically guided by a piston-cylinder combination.

WISTEC basic expansion chuck, here for clamping 70 and 76 mm cores

If different diameters have to be clamped, adapters can be mounted as one solution.

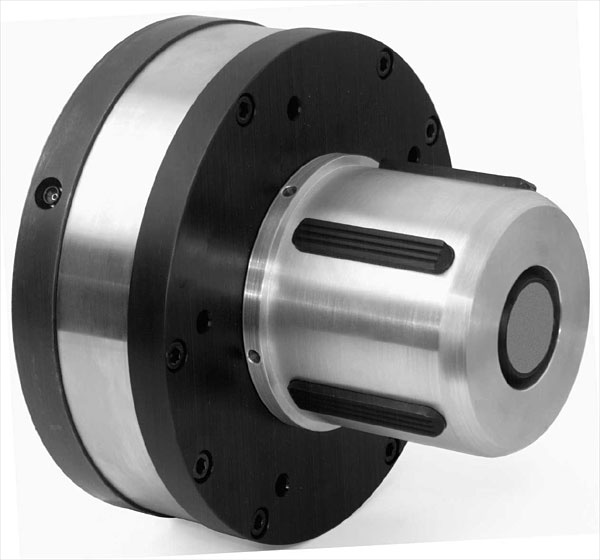

Pneumatisch-mechanischer Spannkopf mit montiertem Aufsatzadapter für 150/152 mm Hülseninnendurchmesser

WISTEC pneumatic-mechanical expansion chuck with mounted adapter for 150/152 mm sleeve inner diameter

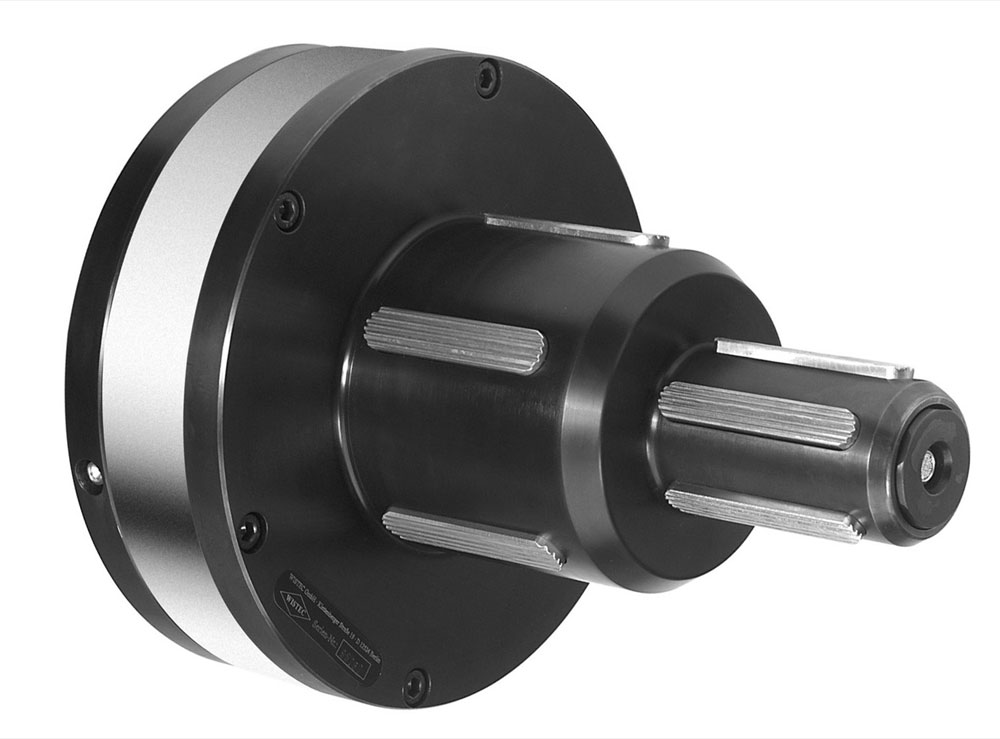

Pneumatisch-mechanischer Spannkopf für die Spannbereiche 70/76 mm und 150/152 mm Hülseninnendurchmesser

WISTEC pneumatic-mechanical chuck head for the clamping ranges 70/76 mm and 150/152 mm core inner diameter

Another possibility to work variably is the use of multi-stage chuck heads.
You can find a dimension sheet here.

For even greater variability, the WISTEC TYPE IV series is suitable, with far greater expansion ranges than are generally available.

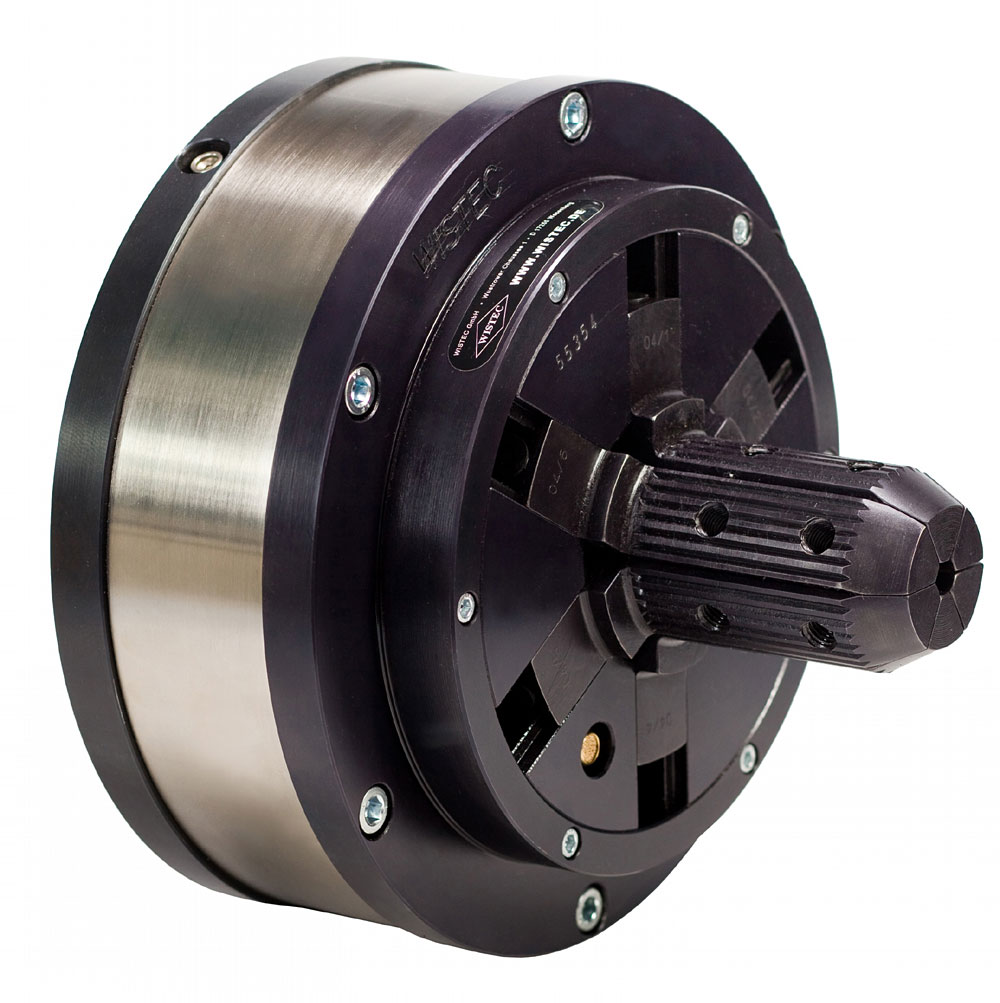

Pneumatisch-mechanischer Spannkopf Typ IV

WISTEC pneumatic-mechanical expansion chuck type IV, basic version,
nominal diameter 68 mm

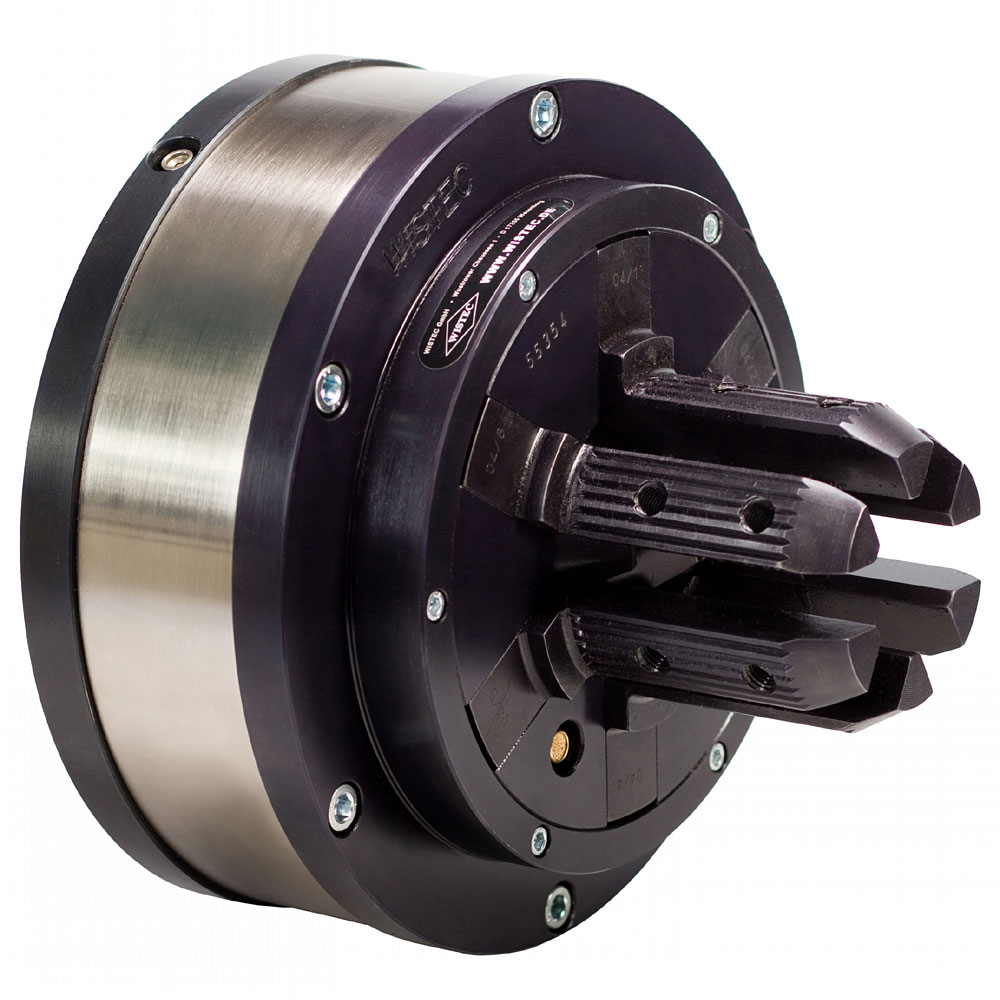

Basisausführung Spannkopf expandiert - Durchmesser 110 mm

Basic version expanded – diameter 110 mm

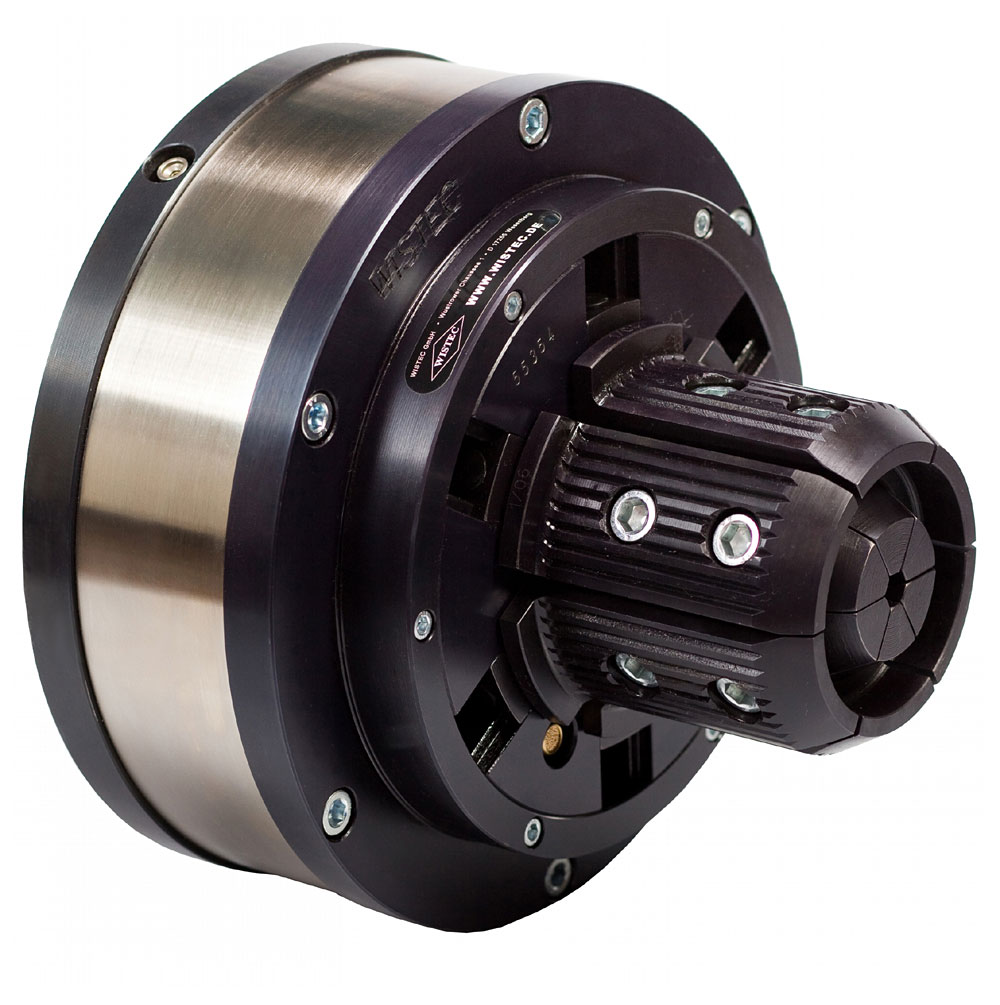

Spannkopf mit Aufsatz Spannelementen und einem Spannbereich Durchmesser 118 bis 160 mm

Shown here with attachment clamping elements
and a clamping range diameter 118 to 160 mm

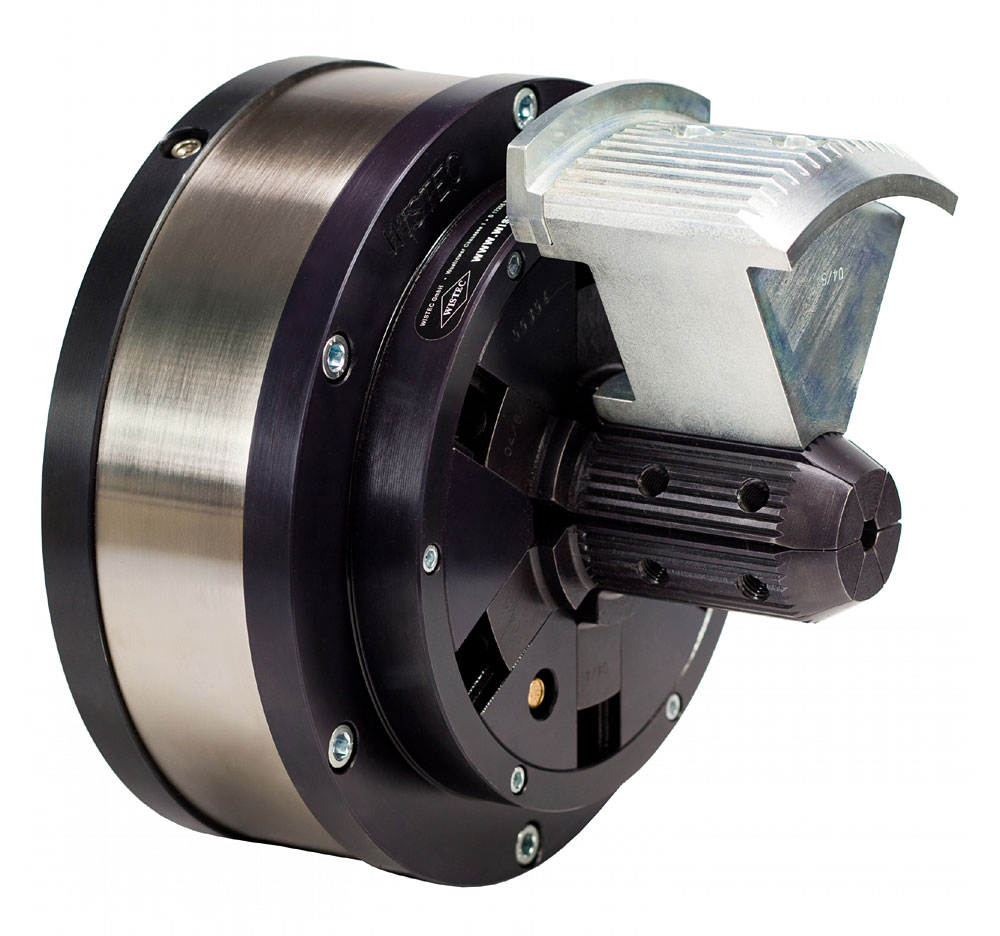

Spannkopf mit Aufsatzelementen nach Kundenwunsch

Or with attachment elements according to customer requirements

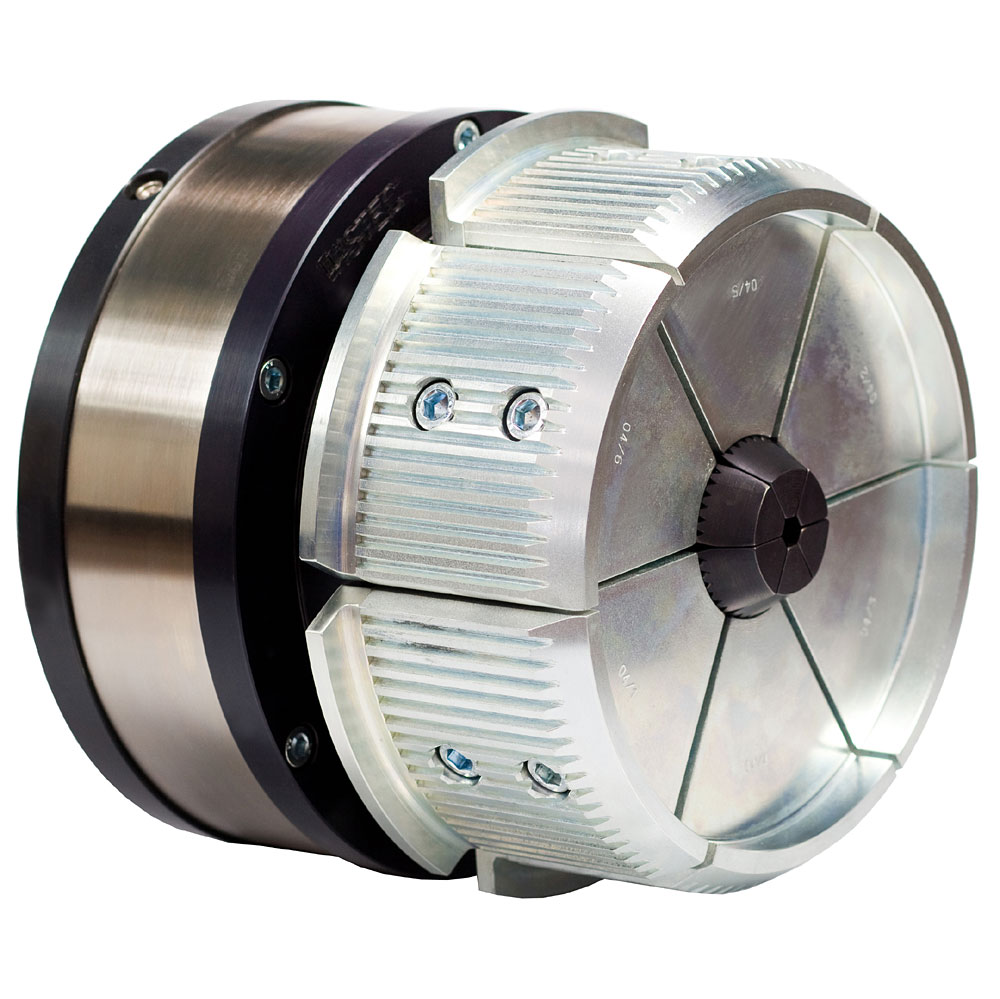

Pneumatisch-mechanischer Spannkopf Typ IV

WISTEC pneumatic-mechanical expansion chuck type IV, with attachment elements for an expansion range from 270 to 315 mm

All pneumatic-mechanical chucks designed and manufactured by us can work according to three principles:

  • pneumatically expanding - resetting by spring force
  • clamping by spring force - pneumatic resetting - safety chuck
  • pneumatically expanding – pneumatic removing

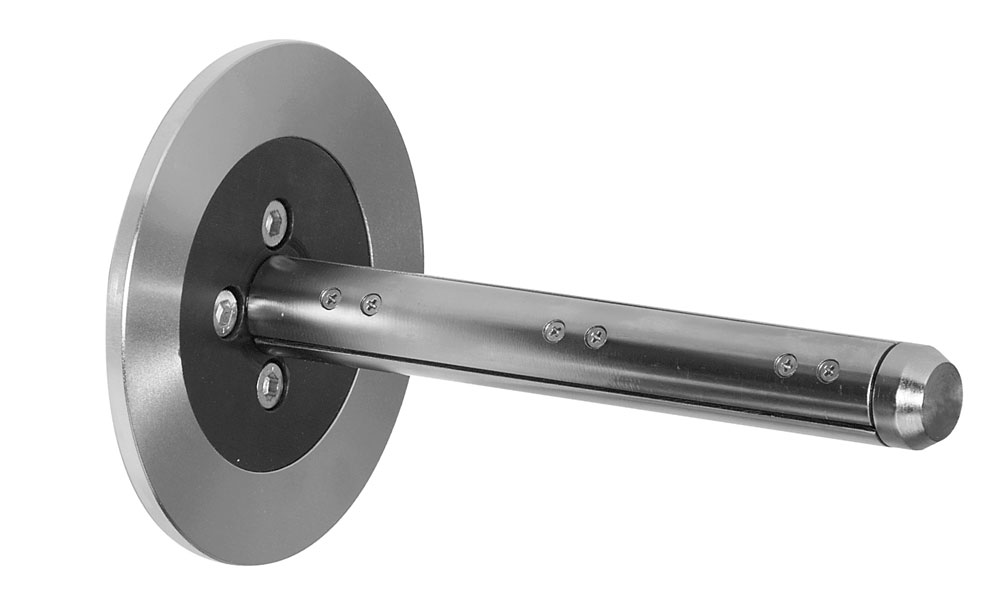

Pneumatisch-mechanischer Spannkopf für 20 mm Hülseninnendurchmesser

WISTEC pneumatic-mechanical expansion chuck for 20 mm core inner diameter; design with 3 clamping shells on the circumference

Important:
The expansion areas can be adjusted according to customer requirements.
Almost all requirements can be realized. Even small sleeve diameters can be clamped safely and centrically.
